If you do not see one clamp or support close to your needs, please contact us and will try to design one for you! part can be fully functionable!Īll plates used are build from 6mm metal sheet, since design was made with the idea of recuperating all the scrap parts when cutting the welding table parts, therefore plan accordingly and ask the Technician from Laser Machine Shop to cut all at parts at once !Īll - LASER CUT (NOT PLASMA CUT) - WELDING TABLES we sell in our store are going to receive an upgrade (FREE OF CHARGE!) with the additional set of dxf files including the table top, table front and table side with interlock holes for the locking pins and pin accessories.įor those who already buy from us the welding tables’ dxf files kit, will receive free of charge the upgraded versions of the dxf files. Parts from the Locking Pins can be use from one to another, and does not require to be weld together.if you have a limited number of Locking Pins and want to mix and match the parts allso the Nut does not require to be weld on to the Bridge if two nuts are use - each on opposite sides of the Bridge, with a small clearance - that the Bolt will rotate freely.

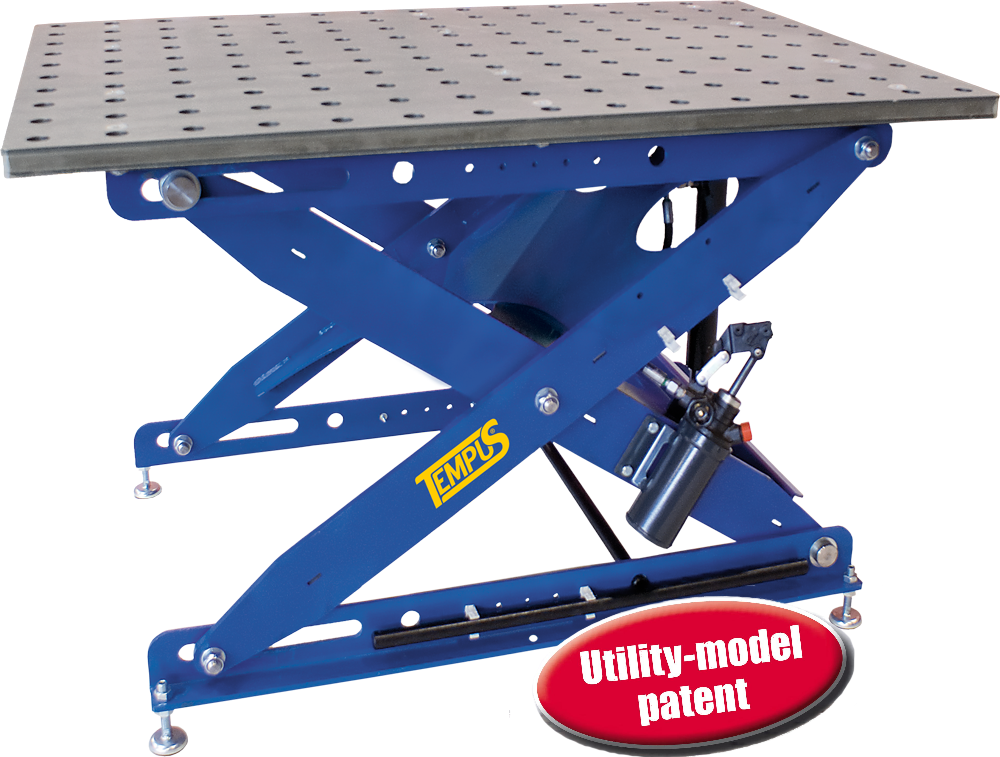

Furthermore, those locking pins can become guidance stoppers and building material support! In order to avoid any frustrating situations where the Securing Clamps cannot fit and lock in to the Table Clamps Holes, I design a simple and innovative Pin Lock what allow a safe and stable connection of the Clamps to the Welding Table. Please be aware that the Welding Table and the Tower shown in the pictures are only for presentation purpose you will need to buy those separately!Ħmm Lock Pin – for 6 and 10mm table top face/table side/table frontĭesign for LASER CUT – 0.2mm OFFSET of interlock parts. Those accessories may become the tools to close the gap between professional and DIY work. DXF Files – Costa Lock Pin – welding table kit accessories
